The Machine Will Install By Expert , Waterproof Wall Panel Cold Making Double Layer Roll Forming/Former Machine

FOB Reference Price:Get Latest Price
$18,500.00 - $22,580.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
LM19-82
Power(W):
7.5 Kw
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Production Capacity:
8-15M/Min
Certification:
Ce Bv Iso Sgs
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
Rfm
Voltage:
380V Or As Customize
Weight:
8.5T
Use:
Roof
Dimension(L*W*H):
7500*1700*1600Mm
Tile Type:
Steel
After-sales Service Provided:
Engineers available to service machinery overseas
raw material:
ppgi
feeding width:
as customers requirement
motor brand:
china famous brand
name:
wall panel making double layer roll forming machine
plc:
mitsubishi/delixi/siemens
operate style:
automatic
profiles:
as customers requirement
thickness:
0.3-0.7mm
cutting blade material:
cr12 with quenched treatment
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
Port
TIANJIN/XINGGANG Port

The Machine will Install by Expert , Waterproof wall panel cold making double layer roll forming/former machine

Technical Parameters:

No.

Item

Specification

1

Can Formed Material

PPGI, GI.

2

Equipment operation

Automatic

3

Voltage

380V 50Hz 3Phase or as your requirement

4

Thickness of sheet (mm)

0.3-0.6mm

5

Material width(mm)

As per your requirement

6

Cover Width of the sheet after formed

as your drawing

7

The size of the roll forming machine

6000mmx1500mmx1550mm

8

Speed

12-15m/min

9

Diameter of shaft

70mm

10

Weight of the Machine

6500-7500KGS

11

Material of rollers

#45 steel quenched and chromed

12

Motor brand

Siemens or Guomao

13

PLC

Siemens or Delta or Mitsubushi

14

Total power (kw)

9.5kw

15

Power of hydraulic system

4kw

16

Power of main molding core

5.5kw



Product Description

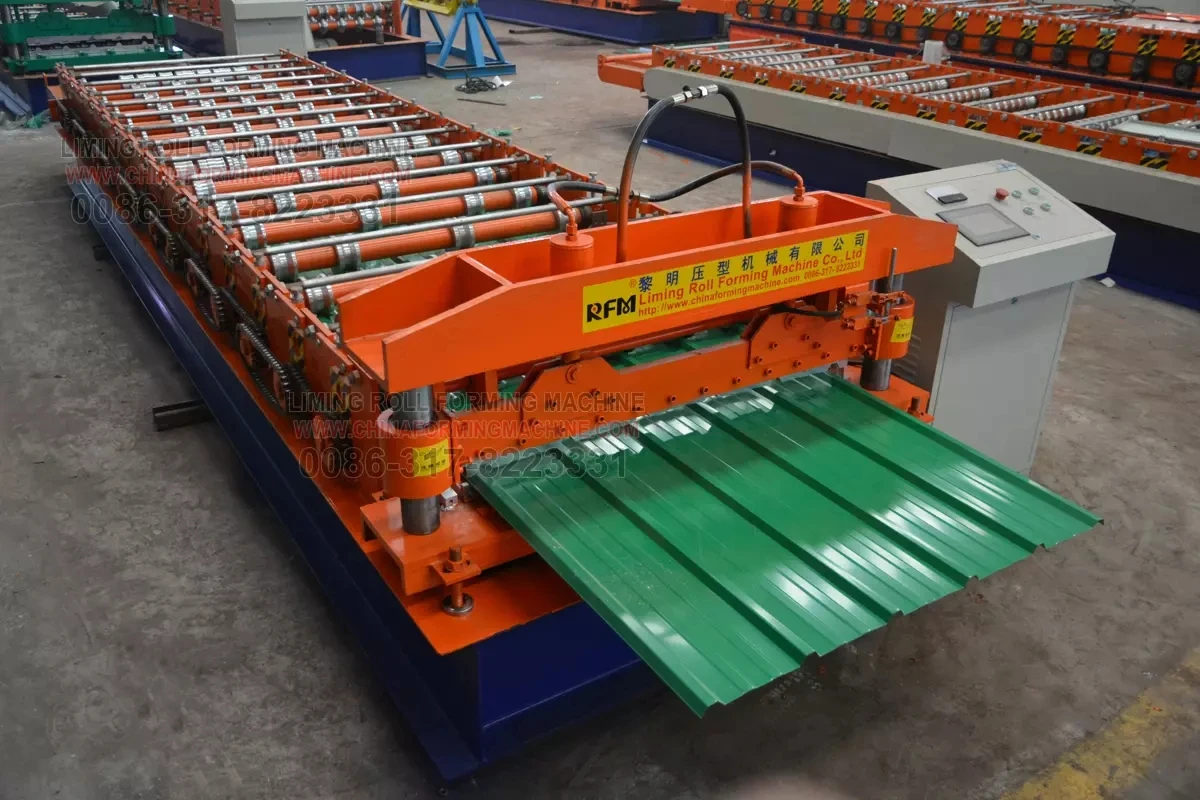

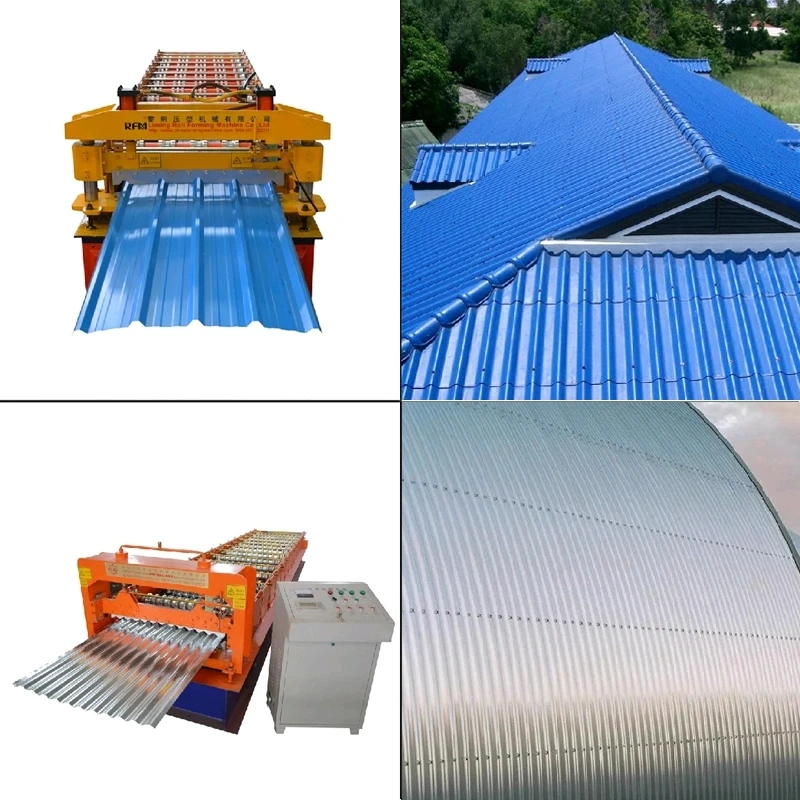

Newly strong type roofing sheet roll forming machine, also called trapezoidal roofing sheet roll forming machine, corrugated sheet roll forming machine.



very popular in Europe, South Africa, Zambia, Brazil, America, Iraq, Uruguay, chile etc.



Advantage:

- This double layer roll forming machine line includes 7 tons manual decoiler, roll forming host, PLC control system and hydraulic cutting system.

- The manual decoiler is free for the machine, it can hold 7 tons of raw material, and normally the distance between the manual decoiler and the roll forming host is 3 meters.

- Roll forming host has 11 rows of rollers to make the doubley layers profiles as per customer's request.


Our Company

Hebei Toya International Trade Co., Ltd is located in Botou City, Hebei Province, the equipment manufacturing foundation is in North China. Our company covers an area of 40,000 square, now we have six workshops, one office building, and other supporting facilities. We brought in the most advanced software and CNC lathes, in order to ensure that every step is in the correct way.

Certifications
Our Service
Packing & Delivery

package and Warranty:

- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

- 2.This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

- 3.All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.

- 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
